Pallet Racking Systems for Utah Warehouses

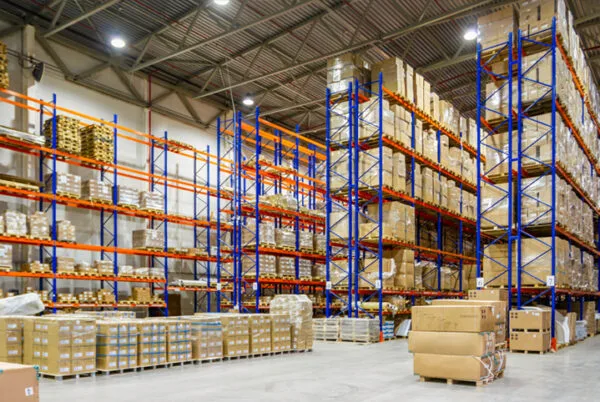

Pallet racking systems are defined by several key specifications: upright gauge (typically 11-gauge through 7-gauge structural), beam capacity (2,000 to 10,000+ lbs per pair), and bay width (typically 96 to 144 inches). Upright height ranges from 8 feet in low-clearance facilities to 50 feet or more in high-bay automated warehouses. The teardrop hole pattern, the North American industry standard, allows beams from most manufacturers to interconnect, simplifying expansions and repairs over the life of the system. Column capacity is determined by the upright height-to-gauge ratio and the distance between horizontal braces.

When specifying a pallet racking system, critical inputs include pallet weight when loaded, pallet footprint dimensions (48×40 is standard but many variations exist), total pallet positions required, lift equipment type (counterbalance, reach truck, order picker, or VNA), and available clear height under sprinklers. Aisle width is driven by your forklift model and must provide adequate operating clearance per manufacturer specs. A narrow-aisle reach truck environment operates in 8–9 foot aisles versus the 11–12 feet required by a standard counterbalance forklift. That difference can add 20–30% more pallet positions in the same building footprint.

Seismic design requirements vary significantly across our Mountain West service area, from the active Wasatch Fault zone in Utah and the Intermountain Seismic Belt running through Idaho, Wyoming, and Montana, to the comparatively lower-risk regions of Arizona and New Mexico. Every pallet racking system we design accounts for the specific seismic design category at that facility's location, with additional bracing, anchor bolt engineering, and base plate design applied wherever project-specific seismic loads require it, to ensure full compliance with IBC and RMI ANSI MH16.1 standards. We also recommend annual rack inspections to identify and address impact damage before it leads to structural compromise.

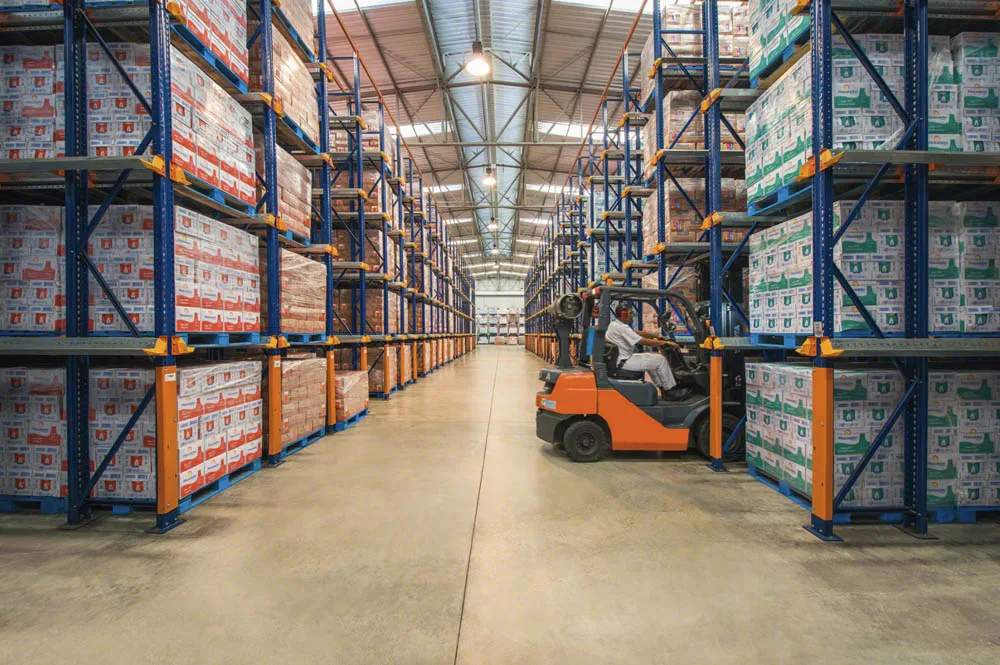

Compare quotes on cost per pallet position rather than on total price or price per bay, because bay pricing hides the variables that matter. A quote using wider bays and fewer uprights looks cheaper per bay while delivering fewer usable positions and lower capacity per level. Cost per position normalizes for bay width, beam levels, and upright count, and it is the only figure that makes two differently configured proposals comparable. Confirm what is actually included: freight, installation labor, anchors, wire decking, row spacers, column protection, engineered drawings, permit support, and load capacity labeling are frequently quoted separately, and a low material price with those items excluded is not a lower project cost.

Aisle width is the highest-leverage variable in a layout and the one most often set by habit rather than analysis. A standard counterbalance forklift typically needs 11 to 13 feet of clear aisle, a reach truck operates in roughly 8 to 9 feet, and very narrow aisle equipment works in 6 feet or less with wire guidance or rail. Moving from counterbalance to reach truck in the same building commonly recovers 20 to 30 percent more pallet positions, though it changes the equipment fleet, the operator training, and the floor flatness requirement. Clear height is the second lever: usable rack height is governed by the distance to sprinkler deflectors and the applicable fire protection scheme, not by the building roof, and commodity classification and in-rack sprinkler requirements can cap a system well below the physical ceiling. Both constraints should be confirmed before a layout is priced, since discovering them afterward usually means re-engineering the entire system.
