Drive-In Racking Systems Utah

Name: Drive-In Racking
Brand: Rocky Mountain Warehouse Solutions
Availability: InStock

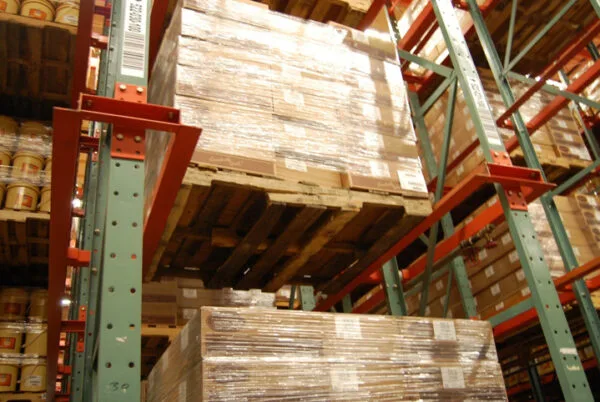

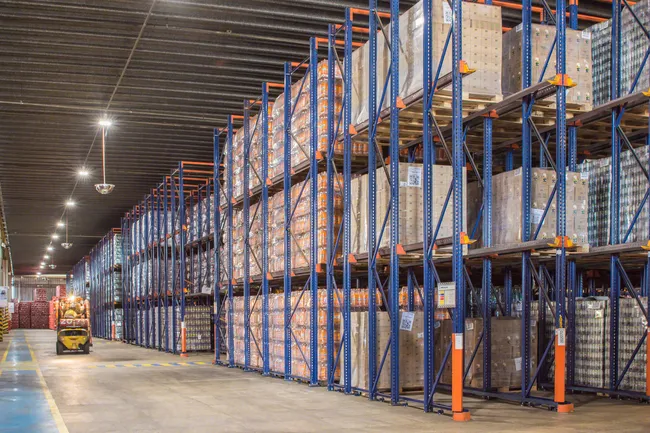

Drive-in racking system with forklift access

Why Choose Drive-In Racking?

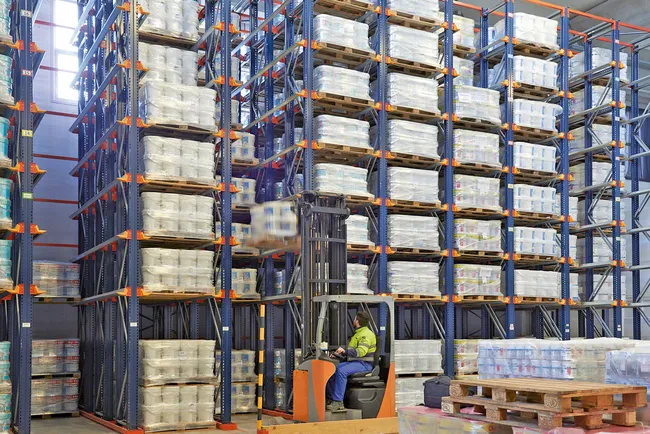

Drive-in racking achieves the highest storage density of any forklift-accessible system by eliminating aisles between storage positions. Forklifts drive directly into the rack structure on continuous rail guides to place or retrieve pallets at the rear, center, or front of the lane. Because all access is from one end only, drive-in is a last-in, first-out (LIFO) system: the last pallet loaded in a lane is the first one retrieved. This makes it ideal for non-perishable products stored in large quantities per SKU, seasonal inventory, and raw materials where product rotation is not a requirement. The storage density advantage of drive-in racking is substantial. A facility that transitions from selective pallet racking to drive-in racking for a single-SKU bulk storage area can increase pallet positions in the same floor space by 60–80%, depending on lane depth and configuration. This density benefit makes drive-in a compelling choice for cold storage facilities where refrigerated cubic footage is expensive, for seasonal goods distributors managing large quantities of a single product for limited periods, and for manufacturers managing raw material buffer stock. Rocky Mountain Warehouse Solutions designs drive-in systems with the structural robustness required for the operating conditions of a drive-in environment. Because forklifts operate inside the rack structure, column damage is more frequent and more serious than in selective racking. Our systems include heavy-gauge uprights, rail guides with replaceable wear caps, and column protectors on all exposed upright faces. We also engineer the system for your specific forklift model to ensure adequate clearances throughout the lane.

Highest storage density of any forklift system
Fewer aisles means more storage positions
Ideal for single-SKU, high-volume storage
Compatible with counterbalance and reach trucks
Cost-effective for bulk seasonal storage

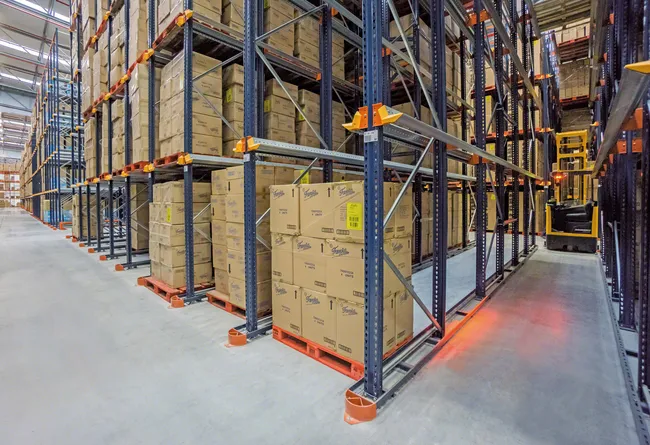

Can serve as freezer or cooler high-density storage
Available in multiple lane depths

Get a Quote for Drive-In Racking

Technical Details & Buying Guide

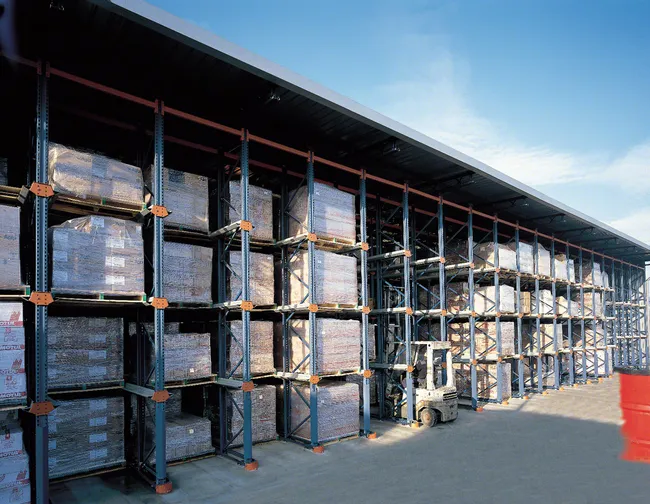

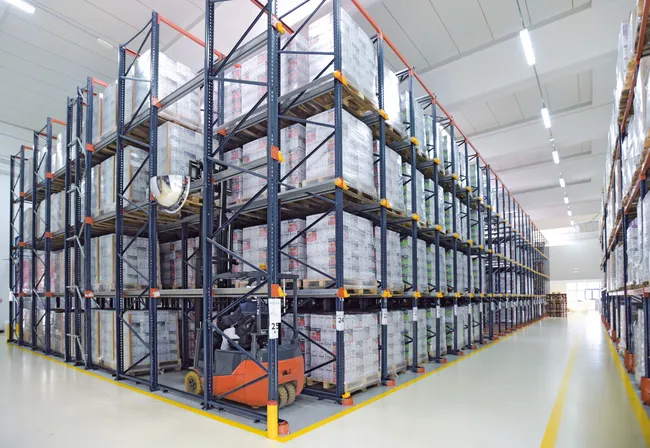

Drive-in racking uses a different structural approach than selective pallet racking. Instead of horizontal cross-bracing between upright frames, drive-in systems use top tie horizontal bracing above the top pallet position and continuous pallet rail guides that run the full depth of the lane. Upright frames are typically spaced 4–5 feet apart along the lane depth, supporting the continuous pallet rails on which pallet loads sit. Forklift clearance inside the lane is a critical specification: minimum 6 inches of clearance on each side of the forklift mast, plus additional clearance for the loaded pallet width, determines the rail-to-rail dimension and upright column placement.

Pallet rail height per level must accommodate the tallest loaded pallet dimension plus a minimum lift clearance of 3–4 inches for placing and retrieving pallets. In high-bay drive-in systems, multiple levels of pallet rails can be configured. However, the practical number of levels is limited by the total lane depth, as very deep lanes at multiple levels require precise forklift operation and are best suited for experienced operators. Single-level drive-in systems are common for very heavy loads (4,000–6,000 lbs per pallet) where stacking height is limited.

Forklift requirements for drive-in racking are more specific than for selective racking. Standard counterbalance forklifts are compatible with drive-in systems, but mast type is critical: a full free-lift mast is required to raise loads above the top rail without the inner mast section contacting the top tie beam. Reach trucks are generally not used in drive-in systems due to their extended reach carriage, which reduces clearances inside the lane. We verify forklift compatibility and recommend mast specifications during the quoting and design process to prevent operational problems after installation.

Industries We Serve

Cold storage and frozen foodBeverage distributionBuilding materialsSeasonal goodsAgricultureManufacturing

Common Use Cases

Seasonal inventory overflow

Single-SKU bulk product

Beverage pallet storage

Frozen food storage maximization

Raw material staging

Cold storage optimization

Frequently Asked Questions

What is the difference between drive-in and drive-through racking?

Drive-in racking is accessed from one end only, with LIFO rotation. Drive-through racking is accessed from both ends, enabling FIFO rotation. Drive-through requires an aisle on each end of the bay, slightly reducing storage density but improving product rotation for date-sensitive or high-turnover products.

How deep can drive-in lanes be?

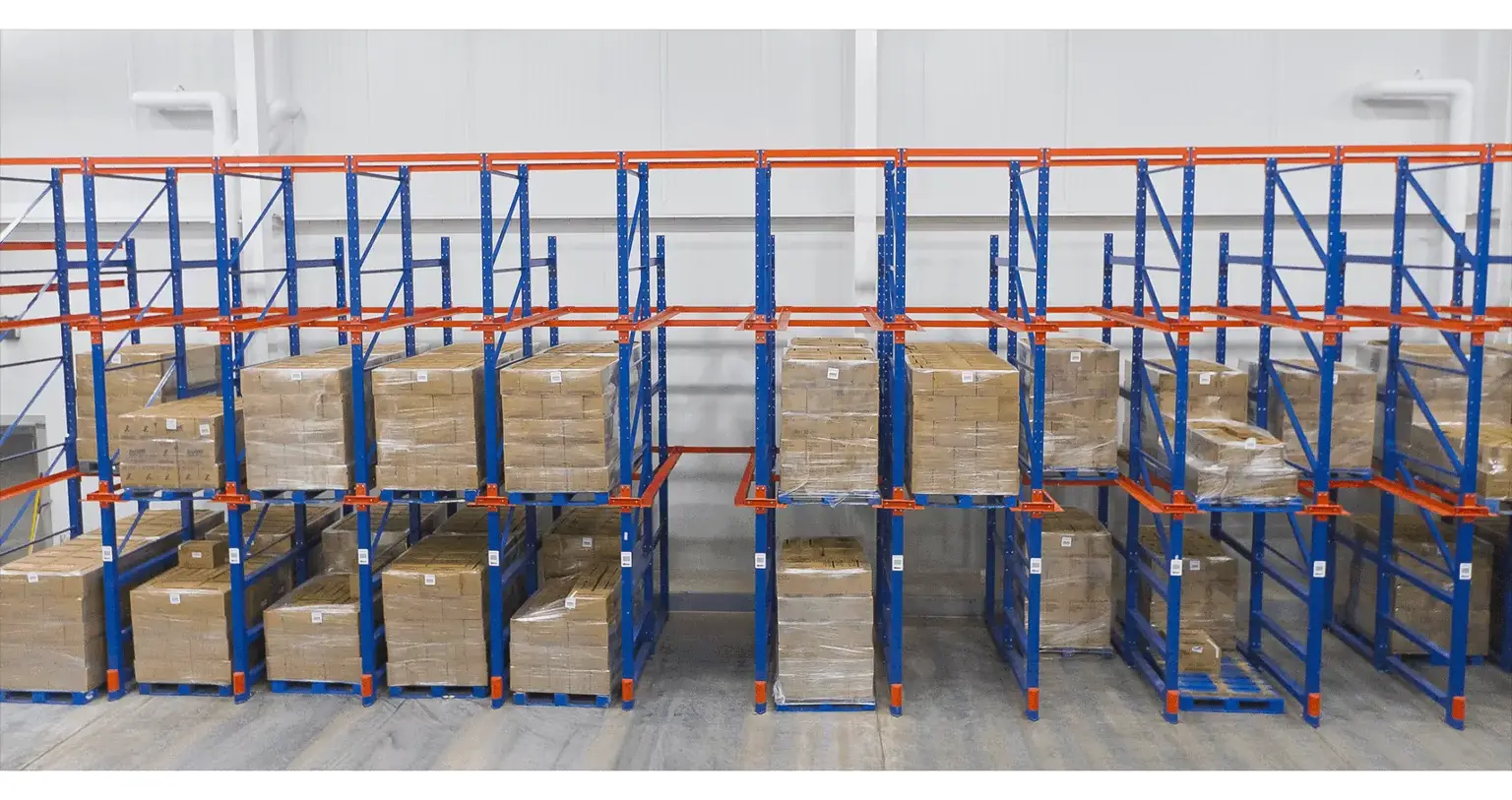

Drive-in lanes can be as deep as your building allows, but practical depth is typically 6–12 pallets. Very deep lanes create selectivity issues and require significant forklift travel time per retrieval. For lanes deeper than 10 pallets, we evaluate whether pallet flow racking might be a more operationally efficient choice.

What forklift do I need for drive-in racking?

Standard counterbalance forklifts work well in drive-in systems, but must have a full free-lift mast to raise loads above the top rail without the mast contacting overhead structure. Mast height and carriage width must be sized for the specific lane width and height. We verify forklift specs during the design process.

Is drive-in racking safe?

Drive-in racking is safe when properly designed, installed, and operated. Because forklifts work inside the rack structure, operator training is critical. We include operator training recommendations with every installation. Heavy-gauge uprights, column protectors on all rail support columns, and replaceable wear caps on pallet rails reduce the impact of the inevitable minor contacts that occur in drive-in operations.

Can drive-in racking be reconfigured for different lane depths?

Drive-in racking is more difficult to reconfigure than selective racking because lane depth is built into the structural frame design. However, lanes can be shortened by removing rear upright sections and rails. Major reconfigurations, such as changing lane depth significantly or converting to a different storage system, typically require re-engineering and partial reinstallation.

Is Drive-In Racking Right for Your Facility?

Available options: New, certified used, and custom-configured systems
Installation: Professional installation and teardown by our trained crews
Layout support: CAD-based warehouse layout assistance included
Service area: Utah, Nevada, Idaho, Colorado, Arizona, Wyoming, and Montana
Response time: Quote within 1 business day. Site visits available.
