High-Speed Roll-Up Doors for Utah Warehouses
Why Choose High-Speed Doors?

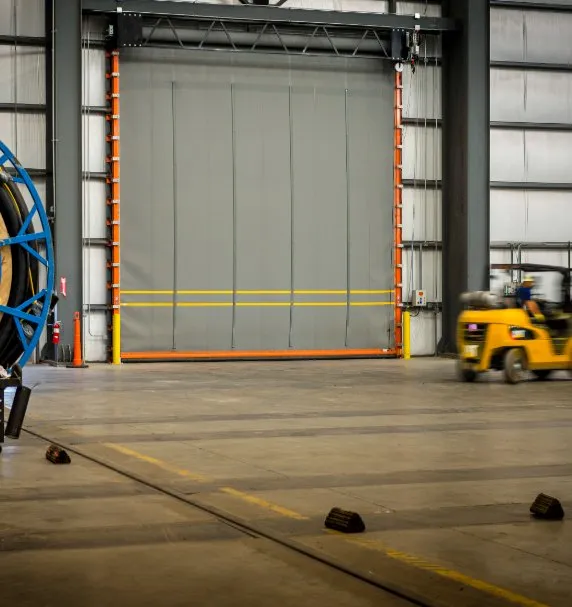

High-speed doors, also called rapid roll doors or high-performance doors, open at 40–80 inches per second, which is 5–10 times faster than a standard sectional overhead door. This dramatically reduces the time a door is in the open position, minimizing air infiltration, maintaining temperature in cold storage and freezer environments, reducing dust and pest infiltration in clean production areas, and improving forklift throughput at high-cycle openings. We supply Albany high-speed doors for interior separation, dock applications, and exterior high-cycle openings throughout the Mountain West. For facilities where energy costs are significant, such as cold storage warehouses, food production plants, and pharmaceutical environments, the financial case for high-speed doors is straightforward. Every minute a standard door remains open in a freezer environment allows warm, moist air to enter, increasing refrigeration load and contributing to frost buildup on floors and evaporator coils. A high-speed door open for 3 seconds instead of 30 seconds per cycle reduces this infiltration by 90%, with measurable impact on energy bills and refrigeration maintenance costs. Rocky Mountain Warehouse Solutions installs and services high-speed doors throughout Utah, Nevada, Colorado, and the broader Mountain West. Our service team handles all high-speed door repairs, fabric curtain replacements, motor and drive replacements, and control system updates. High-speed doors with self-repairing curtain technology are particularly low-maintenance. When a forklift impacts the curtain, it resets automatically without requiring a service call.
- Opens at 40–80 inches per second
- Reduces energy loss in temperature-controlled spaces
- Self-repairing design handles forklift impact
- Reduces dust, pests, and contamination
- Automatic reset after vehicle impact
- Integrates with forklift detection sensors
- Low maintenance compared to sectional doors
Technical Details & Buying Guide

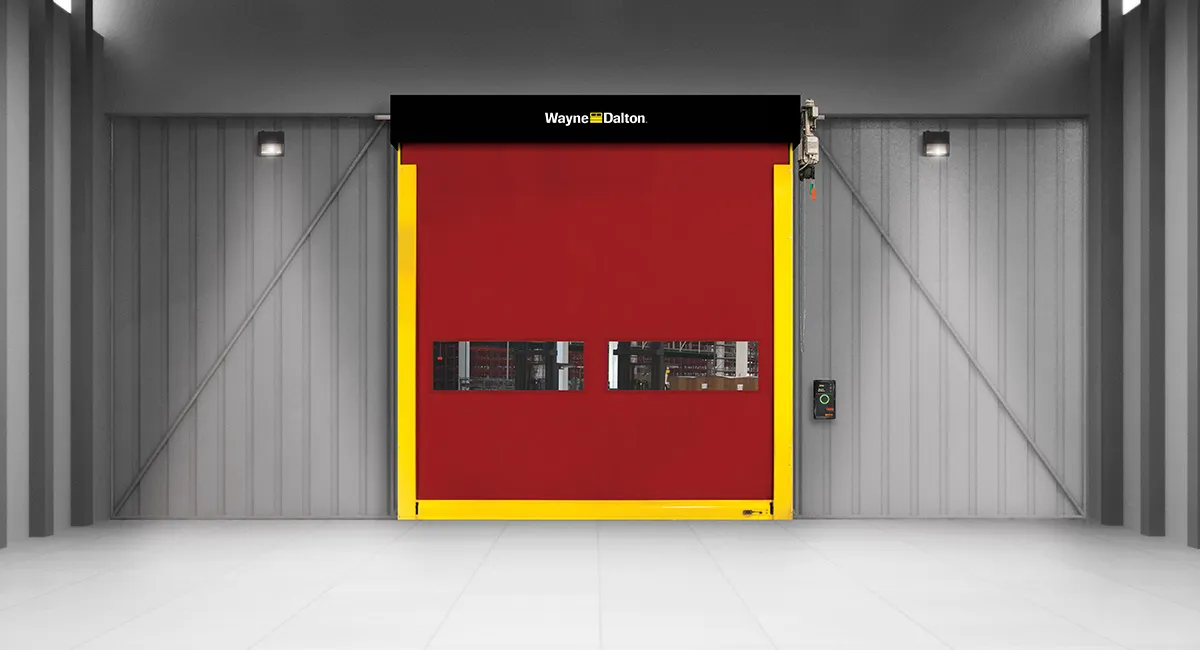

High-speed fabric roll-up doors use a reinforced flexible curtain, typically constructed from heavy-duty PVC or high-tenacity polyester with a reinforced edge configuration, that rolls up around a drum at the top of the opening. Door opening speeds range from 40 inches per second for standard models to 80 inches per second or higher for high-performance versions used in extremely high-cycle or cleanroom applications. Closing speeds are typically slower (20–40 inches per second) for safety. Standard door widths range from 4 to 20 feet, and heights from 8 to 16 feet, with custom sizes available for oversized openings.
Self-repairing (breakaway) curtain technology is one of the most significant advances in high-speed door design. In a standard breakaway system, if a forklift impacts the curtain, the curtain releases from the side guides and the drum returns to the top of the opening without damage to the hardware. Once clear, the door automatically re-guides the curtain and resumes normal operation with no service call required. This feature is particularly valuable in high-traffic facilities where accidental forklift contact is a regular occurrence. Non-repairing doors in the same environment would require multiple service calls per year for curtain repair or replacement.

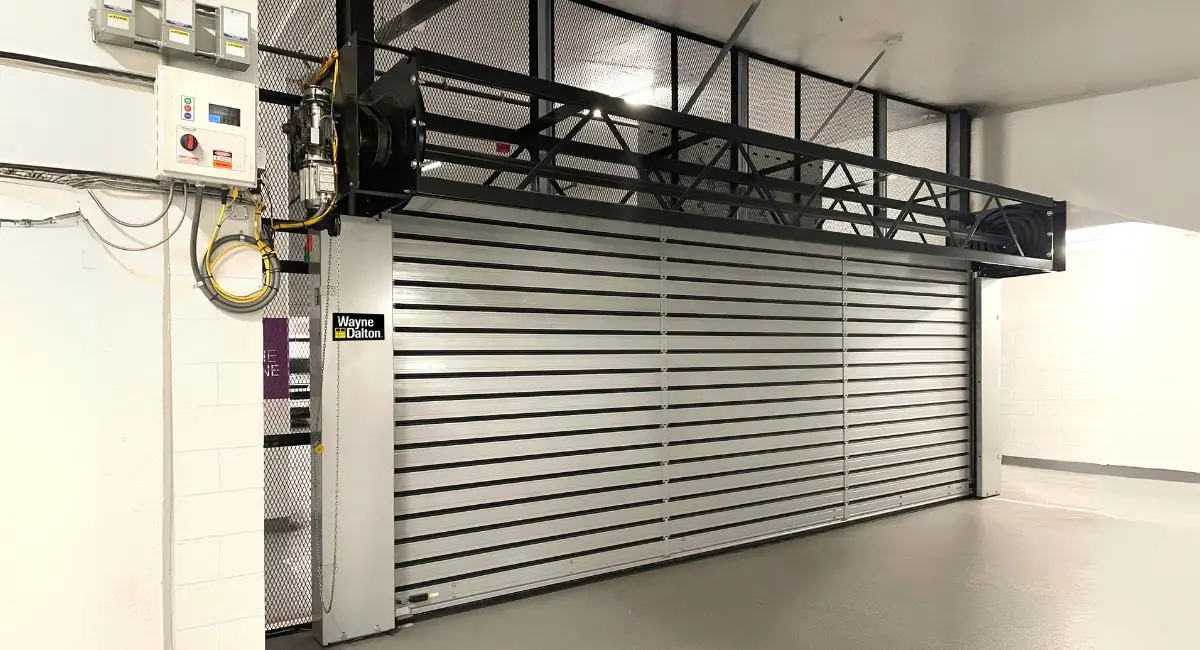

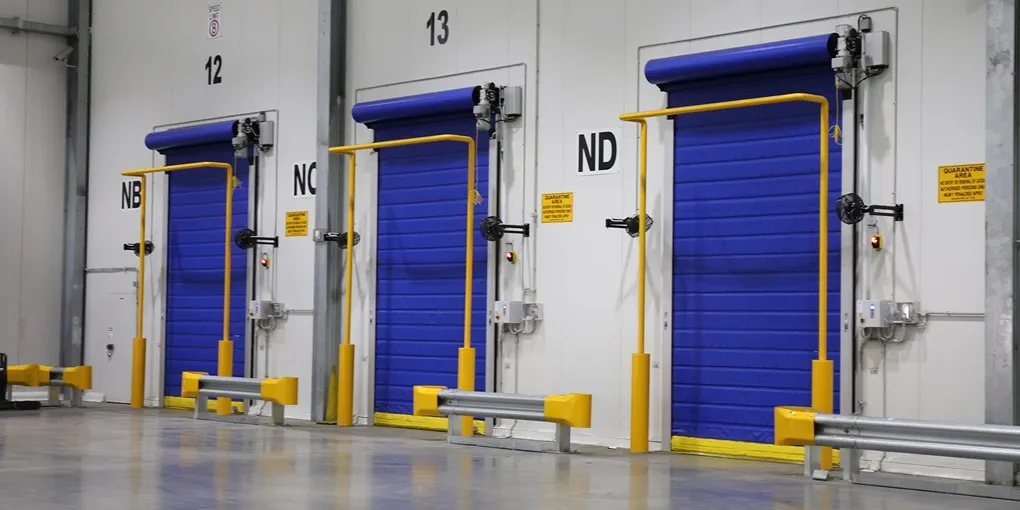

High-speed door controls include a variety of activation options: loop detectors (buried in the floor), motion sensors, push buttons, remote controls, and forklift proximity sensors. For high-security or cleanroom applications, the door can be interlocked with access control systems so only authorized vehicles or personnel can trigger opening. Safety features include photo-eye beams that prevent closing when an object is in the opening, and pressure-sensitive bottom edges that trigger reopening if contact is made during closing.
Industries We Serve
Common Use Cases
Frequently Asked Questions
What happens if a forklift hits a high-speed door?
High-speed fabric doors with self-repairing curtain technology release from the side guides when impacted, allowing the forklift to pass without destroying the door hardware. The curtain automatically re-guides when the door cycles, restoring normal operation without a service call. This feature eliminates most of the repair costs associated with forklift door impacts.
Are high-speed doors worth the cost vs standard doors?
For high-cycle applications processing 50 or more cycles per day, high-speed doors typically pay for themselves within 2–4 years through energy savings, reduced maintenance, and improved throughput. In cold storage or food production environments where temperature and contamination control are critical, the ROI is often faster than 2 years.
Can high-speed doors be used as exterior dock doors?

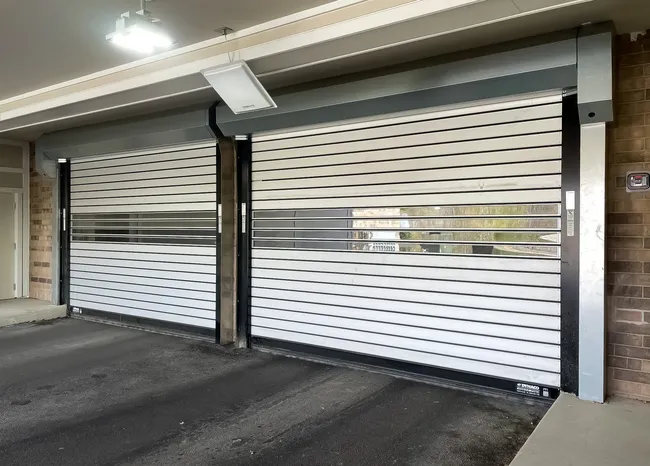

Yes. Exterior-rated high-speed doors are available with weatherstrip packages, wind resistance up to 90+ mph, and curtain materials designed to withstand UV exposure and temperature extremes. They are popular as dock doors in temperature-controlled facilities where the speed and seal quality of a high-speed door outperforms a standard sectional door.
What maintenance do high-speed doors require?
High-speed doors require less maintenance than traditional overhead doors because they have fewer mechanical components. Annual maintenance typically includes lubricating bearings, checking curtain edge guides and seals, testing safety devices (photo eyes, pressure edges), and inspecting motor and drive components. Self-repairing doors that frequently reset due to forklift contact should be checked more often for guide wear.
How fast does a high-speed door need to be for forklift traffic?

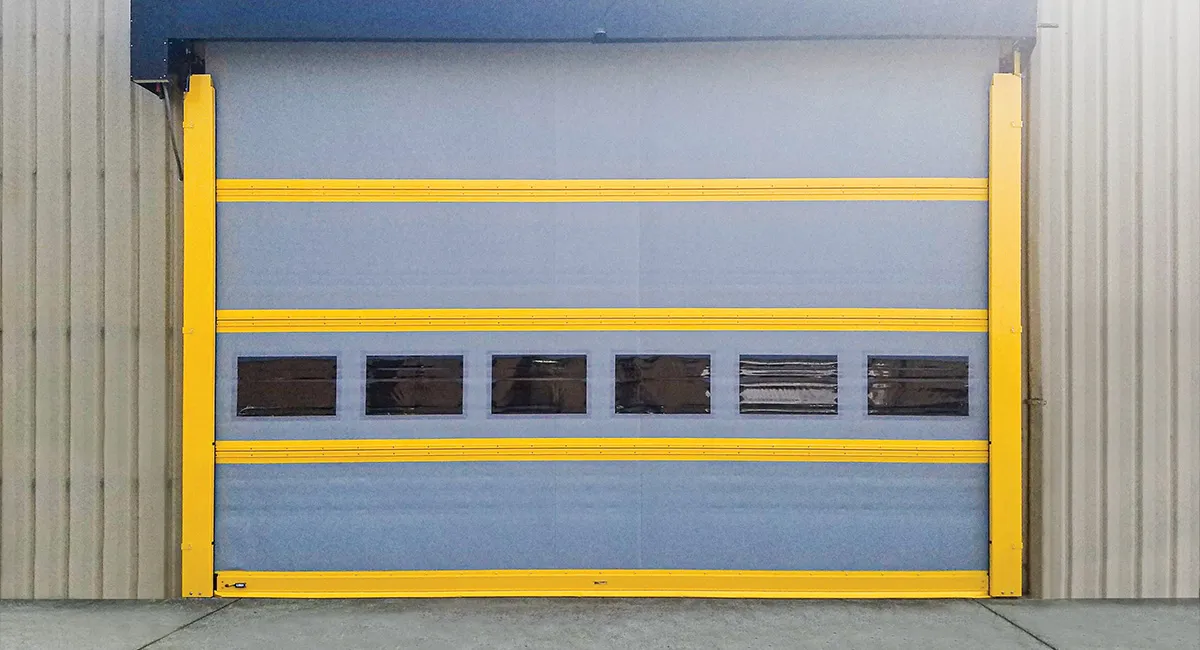

For a standard counterbalance forklift traveling at 5–6 mph, a door opening speed of 40–50 inches per second is typically sufficient to open fully before the forklift arrives. For faster reach trucks or in high-throughput environments, 60–80 inches per second ensures the door is never a throughput bottleneck.
Is High-Speed Doors Right for Your Facility?
- Available options: New, certified used, and custom-configured systems
- Installation: Professional installation and teardown by our trained crews
- Layout support: CAD-based warehouse layout assistance included
- Service area: Utah, Nevada, Idaho, Colorado, Arizona, Wyoming, and Montana
- Response time: Quote within 1 business day. Site visits available.
